A Saddle Pressure Mapping Example Explained

A saddle can feel tolerable for the first ten minutes and still create the loading pattern that leads to numbness, hot spots, and sit-bone pain an hour later. A saddle pressure mapping example makes that pattern visible. Instead of asking whether a saddle feels soft in a showroom, pressure mapping measures where your body is loading the saddle, how intensely it is loading it, and whether that load changes as you ride.

For cyclists who have been told that discomfort is simply part of riding, the data can be clarifying. Pain is not always a conditioning problem. It can be a force-distribution problem: too much pressure concentrated in too small an area, especially under the ischial tuberosities, commonly called sit bones, or through sensitive perineal tissue.

What a Saddle Pressure Mapping Example Measures

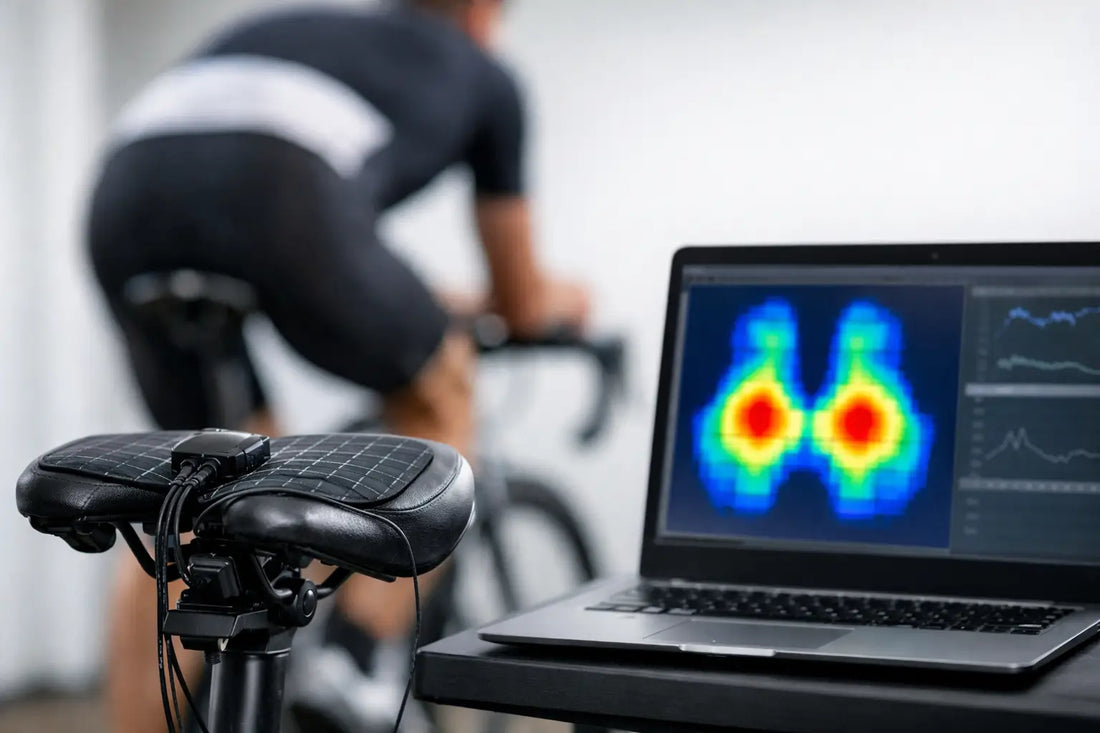

Pressure mapping uses a thin sensor mat placed between the rider and saddle. The mat contains an array of sensing cells that record contact pressure across the saddle surface. Software then displays the data as a color map, typically moving from cooler colors for lower pressure to warmer colors for higher pressure.

The image is useful, but the numbers behind it matter more. A qualified assessment looks at peak pressure, average pressure, contact area, left-to-right balance, center-line pressure, and how each value changes over time. A single red spot is not automatically a failure. The question is whether it represents a sustained, anatomically risky load or a brief, normal part of pedaling movement.

Consider this illustrative comparison between a conventional foam saddle and a pressure-relieving saddle during a steady, seated endurance effort. The same rider, riding position, apparel, and test protocol are used in both runs.

| Measurement | Conventional foam saddle | Pressure-relieving saddle |
| --- | ---: | ---: |
| Peak pressure beneath sit bones | High, concentrated peaks | Lower, more distributed peaks |
| Perineal center-line pressure | Persistent loading | Reduced center-line loading |
| Effective contact area | Smaller after foam compression | Broader, stable support area |
| Left-to-right balance | Shifted toward one side | More even loading pattern |
| Pressure change over time | Peaks increase with fatigue | More consistent through the effort |

This is the difference between cushioning and force dissipation. A soft surface may initially feel pleasant, yet compress under body weight until the rider is effectively supported by a smaller, firmer area. When that happens, pressure rises at the exact points where the rider needs relief.

Reading the Pressure Map Beyond the Colors

A productive saddle pressure map is not perfectly uniform. Cyclists need stable support under the sit bones to pedal efficiently, particularly when maintaining a forward, performance-oriented position. Trying to eliminate all pressure would create an unstable platform and can increase unwanted movement, chafing, and energy loss.

The goal is controlled load distribution. On a healthy map, the sit bones are supported across a meaningful area rather than perched on two narrow, high-pressure points. The central region shows appropriate relief, particularly for riders who experience genital numbness or soft-tissue discomfort. The front of the saddle should not show aggressive, sustained pressure unless the rider spends substantial time in an intentionally rotated, aerodynamic position.

Left-to-right symmetry also deserves attention. A rider may load one side more heavily because of a leg-length difference, pelvic rotation, prior injury, cleat position, or simply how they sit on the bike. A map can identify the asymmetry, but it should not be used to blame the saddle for every imbalance. Bike fit and human movement are part of the system.

Time is another overlooked variable. A static measurement while seated upright may look acceptable, then become problematic after thirty minutes of pedaling, fatigue, terrain vibration, and small posture shifts. The most useful saddle pressure mapping work includes a realistic riding effort and compares early-ride data with later-ride data. Rising peak pressure can indicate that the saddle material is collapsing, the rider is compensating, or both.

A Saddle Pressure Mapping Example in Practice

Imagine a regular gravel rider who reports sit-bone soreness after 90 minutes and intermittent numbness on longer rides. Their current saddle is moderately padded, narrow through the rear support zone, and uses a conventional foam construction.

During a seated pedaling test, the map shows two bright peak zones directly beneath the sit bones. The rider has adequate contact at first, but as the foam compresses, the contact area becomes smaller and peak pressure increases. A third warm zone appears along the center line toward the front of the saddle. The rider unconsciously rotates the pelvis and shifts forward to escape the rear hot spots, increasing soft-tissue loading.

The first response should not be to add a thicker pad. More thickness can raise the rider, change effective saddle height, and introduce a soft, unstable surface that compresses under load. The better response is to establish the correct saddle width for the rider's support anatomy, then use a construction that distributes force without allowing the support layer to bottom out.

When the rider repeats the test on a correctly sized saddle with multi-density support, the map may show a larger contact footprint under the sit bones, lower peak zones, and a cooler center channel. The rider still has firm skeletal support for power transfer. What changes is the intensity and concentration of the load.

That is the practical value of mapping. It gives an objective explanation for why one saddle can feel more stable and comfortable under real pedaling force, even if it does not feel dramatically softer when pressed by hand.

Why Material Construction Changes the Result

Traditional foam and gel saddles tend to rely on one material layer to manage several conflicting demands: impact absorption, pressure relief, stability, and durability. Under repeated loading, foam can pack down or collapse. Gel can shift, creating a temporary soft sensation without consistently controlling peak pressure.

A multi-density construction addresses the problem differently. Lower-density material can manage local impact and contouring, while firmer structural zones maintain support beneath the sit bones. The saddle does not need to be uniformly soft to reduce pressure. It needs to respond differently in different areas, based on the forces those areas experience.

Zeta Saddles applies this principle through its patented MultiDensity Reactive Padding™, using a seven-piece dynamic composite structure designed to dissipate impact and maintain support rather than relying on a single foam layer. The engineering focus is not plushness for its own sake. It is stable, repeatable pressure reduction without sacrificing the pedaling platform serious riders need.

There are trade-offs. A wider saddle may improve rear support for one rider while causing thigh interference for another. A deeper relief channel may help a rider with pronounced perineal symptoms but may not solve discomfort caused by excessive saddle height or an overly aggressive reach. Mapping identifies loading patterns; it does not replace a sound fit process.

Using Pressure Data to Make Better Saddle Decisions

If you are evaluating a saddle, use pressure mapping as one piece of evidence alongside ride feedback. First, confirm that saddle height, fore-aft position, and tilt are reasonably set. An excessively nose-up saddle can increase perineal pressure, while a nose-down position can force the rider to brace through the arms and slide forward.

Next, look for repeatable symptoms. Localized sit-bone pain usually points toward concentrated rear loading, insufficient support area, or material compression. Numbness points toward center-line soft-tissue pressure, though pelvic posture and bar reach may contribute. Chafing often signals instability and excess movement rather than a simple need for more padding.

Finally, test long enough to expose the saddle's behavior under fatigue. A saddle that feels fine on a short spin has not necessarily proven that it can manage pressure over a two-hour road ride, a gravel event, or a week of training. The best choice is the one that holds its support characteristics as your body moves, sweats, and produces power.

A useful pressure map should lead to a better question than “Is this saddle soft enough?” Ask whether the saddle is keeping force off the tissues that should not carry it while giving your sit bones a stable platform to do their job. That is where longer, stronger, more comfortable rides begin.
